More Details

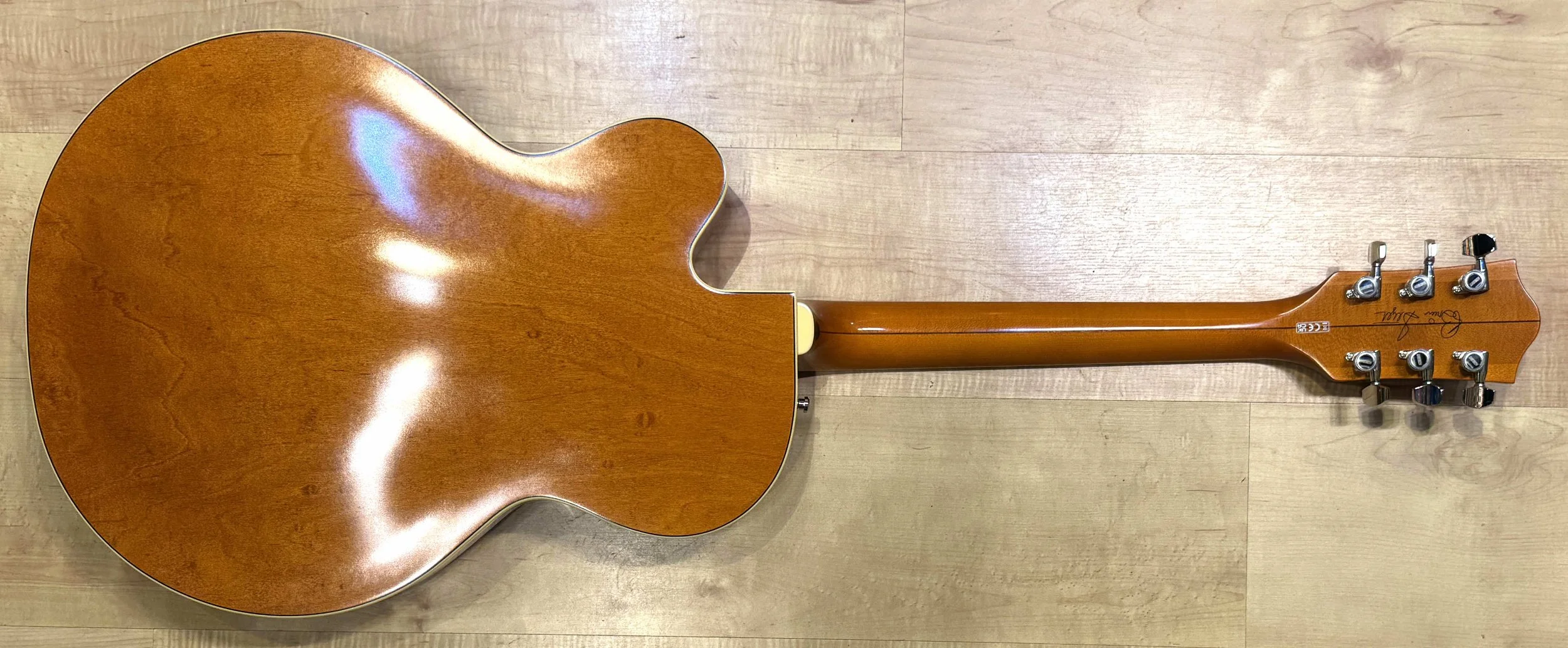

Beneath its vintage cloak however, Smoke is a true workhorse with features accumulated over a prolific span of Brian's career. Stage-veteran specs include a single-cutaway hollow body with arched laminated maple top, 1959 trestle bracing and oversized F-holes for improved sonic projection. The maple neck has a 9.5"-12" compound radius ebony fingerboard and a vintage 'V' neck shape for comfortable chording or lightning leads. The rolled fingerboard and body edges couple with the semi-gloss finish to create an unparalleled broken-in feel found only in the prized G6120s from the 1950s.
Dual TV Jones® Ray Butts Ful-Fidelity pickups provide timeless tone with excellent bass response and shimmering Filter'Tron™ sparkle. For complete roadworthy stability, Smoke is equipped with an Adjusto-Matic™ bridge with pinned rosewood base, Bigsby® B6CGH vibrato tailpiece, Delrin® nut and Gotoh® locking tuning machines.
General
SERIES: Artist Signature Edition
ORIENTATION: Right-Hand
COLOR: Smoke Orange
Neck
NECK MATERIAL: Maple
NECK FINISH: Semi-Gloss Lacquer
NECK SHAPE: Vintage "V"
FINGERBOARD RADIUS: 9.5"-12" Compound Radius (241 mm-305 mm)
FINGERBOARD MATERIAL: Ebony
POSITION INLAYS: Pearloid Neo-Classic™ Thumbnail
NUMBER OF FRETS: 22
STRING NUT: Delrin®
NUT WIDTH: 1.685" (42.8 mm)
NUT MATERIAL: Delrin®
FRET SIZE: Medium Jumbo
SCALE LENGTH: 24.6" (625 mm)
Body
BODY: Laminated Maple
BODY FINISH: Semi-Gloss Lacquer
BODY SHAPE: Nashville® / G6120
BODY TOP: Arched Laminated Maple
BODY BINDING: Aged White with B/W Purfling
BODY BACK: Arched Laminated Maple
BODY STYLE: Gretsch® Hollow Body Guitars
BODY MATERIAL: Laminated Maple
BRACING: 1959 Trestle Bracing
WAIST: 9.5" (241mm)
SOUND HOLE: F-Holes
Hardware
BRIDGE: Adjusto-Matic™ with Pinned Rosewood Base
BRIDGE COVER/TAILPIECE: Bigsby® B6CGH
BRIDGE MOUNTING: Pinned
PICKGUARD: Gold Plexi with Artist Signature and Gretsch® Logo
CONTROL KNOBS: G-Arrow
HARDWARE FINISH: Nickel
TUNING MACHINES: Gotoh® Locking
STRINGS: Nickel Plated Steel (.010-.046 Gauges)
NECK PLATE: None
STRAP BUTTONS: Strap Locks
Electronics
BRIDGE PICKUP: TV Jones® Ray Butts Ful-Fidelity
NECK PICKUP: TV Jones® Ray Butts Ful-Fidelity
PICKUP CONFIGURATION: Filter'Tron™ / Filter'Tron™
CONTROLS: Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume
SWITCHING: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup, 3-Position Tone Switch
